ROTARY SWITCHKRT TYPE

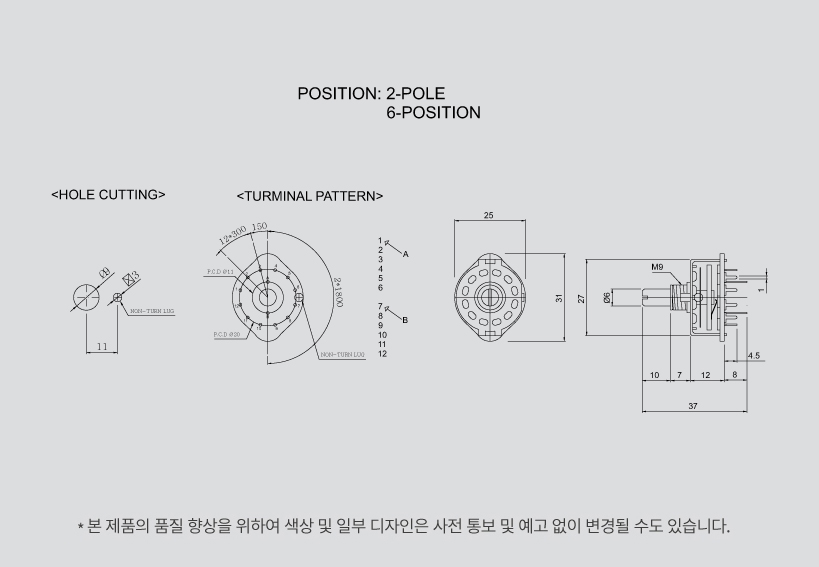

KRT-206ROTARY SWITCH KRT TYPE

    • Industrial machine control unit, or other digital devices.
      2 pole
       6 position (Replacement : 1 pole 6 position)
MODEL


Specification

Type & Use

    • 1 Pole 1 1pole
      2 2pole
      3 3pole
      4 4pole
      5 5pole
      6 6pole
    • 1 Pole 7 7pole
      8 8pole
      9 9pole
      2 Contact point AA 13C.P (27.7°)
      AP 26C.P (13.85°)
    • 02 Characteristics


            1. Since it's series number is prefabricated from 1 to 9 and thus allows for choice according to circuits, it's very economical.
            2. It's very convenient. Because the contact points can be easily changed by using the stopper bolt.
            3. When the 26 circuit(AP) is selected, the degree of dial step is 360°/26 circuit. when the 13 circuit(AA) is selected,
                 the degree of dial step is 360°/13 circuit.
            4. There are 2 kinds of the 360°/13 contact point which turns to the next contact point at the complete off
                position and 360°/26 contact point which turns to the next contact point at no off position.
            5. It's special structure enables to assemble multi steps and series numbers. (up to 360°/26 step and 10 poles numbers.)

    • 03 KRT / KRB Type


    • 1 Pole
      ·
      Position
      102 1pole 2position
      107 1pole 7position
      108 1pole 8position
      110 1pole 10position
      111 1pole 11position
    • - Rotation angle : 30˚
    • 1 Pole
      ·
      Position
      112 1pole 12position
      205 2pole 5position
      206 2pole 6position
      304 3pole 4position
      403 4pole 3position
    • 04 KRS Type


    • 1 Contact
      point
      4K 4C.P (90°)
      6K 6C.P (60°)
    • 05 Characteristics


             1. Fast Responsibility : using of a reed switch.
             2. Accurate Angles of 60° & 90°.

    • 06  KRP Type


    • 1 Position 3 position
      4 position
    • Rotation angle : 45˚

Manual & Attention



    • Warning

      1. When it used in a machine that might cause accidents of worker or enormous property damage, It should be used after the double safety device is attached.
      2. If it is used with the voltage other than the designated one, it might cause injury for human and property damage.
      3. Before turning on the power, make sure whether the wires are connected correctly.
      4. Do not disassemble, process, remedy or repair this product in any case, because it might cause malfunctioning.

      Attention
      1. Do not use it outside.
      2. Do not use it in a place, where corrosive gas(especially, harmful gas, ammonia, etc.) and inflammable gases are generated.
      3. For cleaning, do not use water or fluid solvent, but use a dry cloth or compressed air.
      4. For installation and separation of this product, make sure the power is OFF.
      5. When connecting it with external equopments, check the wire number and make sure it is connected correctly.
      6. Avoid the following places when installing the product.
          - Place where the main body can receive shock or vibration directly.
          - Place with a lot of dusts, dirts, salts or irons.
          - Place exposed with a direct sunlight.
      7. The specifications (colors and parts of design, etc.) are subject to change without prior notice for quality improvement of the product.
